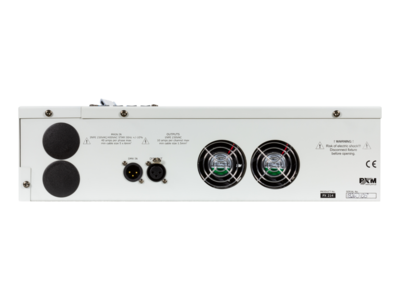

PX214 AC Dimmer 12 x 2300 W
Description
PX214 - 12-channel professional digital dimmer, 10 A per channel.
AC Dimmer 12 x 2300W can be powered from both the three and with two or one phase. Allows you to control 12 independent channels with a capacity of 2.3 kW each. Advanced electronics allow arbitrary addressing of each channel, the choice of control characteristics, setting limits the output voltage, switching the heat up of the lamps, as well as defining the response to the lack of dimmer control signal.
Embedded systems "PLL", "soft-start", "soft-on" and "even-off" ensure reliable operation under extreme conditions. Direct detection of zero in electrical wiring and optical isolation of DMX input guarantees a high resistance to interference. Using three-color LED indicators allows to monitor the work of each circuit and the DMX signal. The device is produced in a casing for wall mounting.
Technical data
- DMX IN/OUT channels 1 - 512
- Opticaly isolated DMX line YES
- Open circuit detection YES
- Overvoltage protection YES
- Fans electronically controlled
- Outputs load capacity12 x 2300 W continuous load resistance
- 12 x 1400 VA continuous inductive load resistance (Conventional and neon transformers)
- Power supply 3 x 230 V / 40 - 70 Hz
- Weight 18 kg
- Dimensions 415 x 480 x 115 mm
